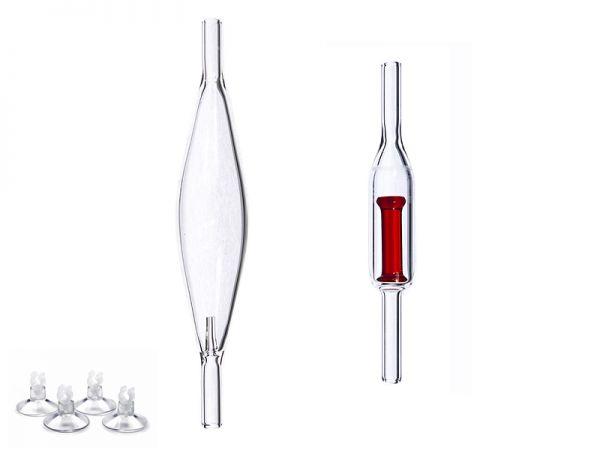

CO2 Glass Counter Conic, incl. check valve

CO2-Counter Conic with a separate check valve in the Japanese style. Both glassware articles are made of high-quality glass and serve to monitor the CO2 supply and to prevent water from entering the CO2 system.

In an aquarium it is important to maintain the optimal level of CO2 in order to avoid stressing the fish (as the pH drops when too much CO2 is present) and to avoid stunted growth in the plants, which may occur when CO2 is deficient.


Characteristics
• made of glass
• with a separate check valve, so no water may enter the CO2 system
• compatible with pressurized cylinders and bio CO2
• for standard 4/6 mm hose
• with 4 transparent suction cups


Dimensions
Height bubble counter: 125 mm
Diameter bubble counter: 25 mm
Height check valve: 80 mm
Diameter check valve: 11 mm


Use
• Fill the bubble counter with water
• Connect the CO2 supply with the check valve using a piece of CO2 hose
• Connect the check valve with the bubble counter (lower connection)
• Connect the upper connection of the bubble counter with a CO2 diffuser or reactor
