CO2 Magnetic Valve (Night shut off)

With a solenoid valve, the pH value can be controlled via a CO2 system with a pH controller, and the CO2 supply can be switched off completely at night.

In order to achieve a certain pH value in the aquarium and to regulate this via the CO2 supply, CO2 controllers are used. These measure the pH value in the water with a pH probe and the controller calculates, depending on the setting, whether CO2 needs to be added or not. It controls the solenoid valve and thus regulates the CO2 supply.

Plants do not need any CO2 in the night and therefore CO2 systems should be switched off in the dark. This not only reduces CO2 consumption, it also prevents excessively high CO2 values ​​in the aquarium at night. A night shutdown is easily implemented with a solenoid valve by operating it via a timer or switching it on together with the aquarium lighting. The solenoid valve is simply connected to the CO2 hose between the pressure reducer and the CO2 diffuser. It has the usual 4/6 mm hose connections.

Note: A CO2 pressure hose must be used from the pressure reducer to the solenoid valve.

The GH-GOODS Solenoid (Magbetic) valves are manufactured in Germany (Made in Germany) and are characterized by:
- high reliability
- easy assembly
- only 1.6 watt power consumption, thanks to patented diode circuit
- noiseless (hum-free)
- low heat generation
- 1.25 m connection cable
- 100% ED (suitable for continuous operation)
- Hose connections: nickel-plated brass
- normally closed
- Protection class IP65 (protected against water jets)

The GH-GOODS Solenoid valve meets most of the requirements of our customers and is optionally available with a check valve.

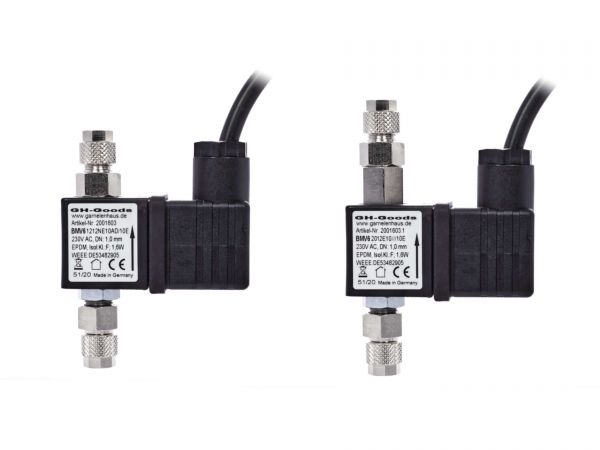

GH-GOODS - CO2 Magnetic Valve

Technical data
Power supply: 230V 50 / 60Hz
Power consumption: 1.6 watts
Cable length: 1.25 m
Insulation class: F (155 ° C)
Protection class: IP65
DN: 1.0 mm, EPDM seal

Optional
with built-in check valve (from 0.04 bar)
