AQUA-NOA

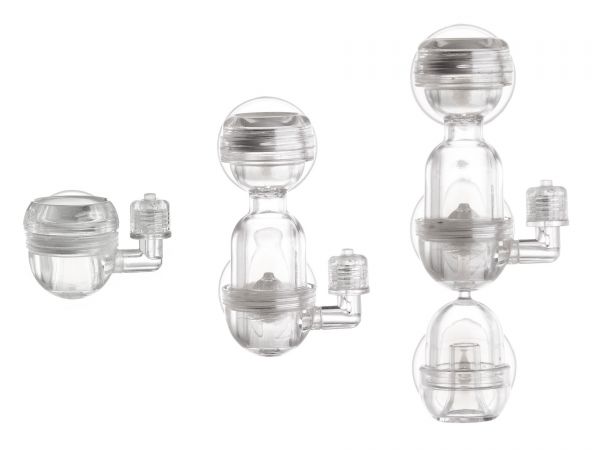

CO2 Diffuser M-Series (inner reactor)

CO2 - Diffuser / Reactor
transparent and compact design Hose connection with safety-nut with exchangeable ceramic membrane optionally with bubble counter and check valve
Available variants
Price
MS1, Membran 14 mm
8.90 €
MM1, Membran 21 mm
9.40 €
ML1, Membran 25 mm
9.90 €
MS2, Membran 14 mm, counter, non-return valve
10.90 €
MM2, Membran 21 mm, counter, non-return valve
11.70 €
ML2, Membran 25 mm, counter, non-return valve
12.50 €
MS3, Membran 14 mm, counter, non-return valve, CO2 checker
14.90 €
ML3, Membran 21 mm, counter, non-return valve, CO2 checker
15.70 €
MM3, Membran 25 mm, counter, non-return valve, CO2 checker
16.50 €

Article in stock

Delivery time 1-3 business days*

please select your desired variant above
P on purchase receive bonus points now**
CO2 (carbon dioxide) dissolves in the water. You can easily observe this phenomenon when you... more
AQUA-NOACO2 Diffuser M-Series (inner reactor)

CO2 (carbon dioxide) dissolves in the water. You can easily observe this phenomenon when you watch a CO2 bubble on its way to the water surface: it shrinks.

In order to maximize the contact of the gas with the water and to guarantee a high dissolution, the AQUA-NOA CO2 diffusors of the M series atomize the gas into minute bubbles. Many of them don't even reach the water surface since the CO2 has dissolved entirely in the water on their way up. A diffusor is a highly efficient method of getting as much CO2 into the water as possible and to provide the aquarium plants with the vital carbon they so urgently require.

All AQUA-NOA internal CO2 reactors / AQUA-NOA CO2 diffusors of the M series are equipped with:

• a very finely pored ceramic membrane
• removable ceramic membrane
• a 4/6 mm CO2 hose connection with a union nut
• suction cups for mounting on the aquarium glass

Optionally, the types 2 and 3 are available with:

• a bubble counter for easy visual control of the amount of CO2 that is injected
• a check valve that protects the solenoid valve and/or the pressure reducer from water

In addition, the types MS3, MM3 and ML3 come with:

• a permanent CO2 test for monitoring the optimal CO2 content

The combination of these additional functions in one device saves you several lengths of hose that would not only be unsightly but might increase the risk of leakages.
There is only one direct CO2-tight or silicone hose connection from the solenoid valve or the CO2 pressure reducer to the CO2 diffusor.

The connection of the AQUA-NOA CO2 diffusors of the M series is secured with a union nut. Use standard 4/6 mm CO2 hose that is usually part of any CO2 set available in trade.

Please note: The AQUA-NOA CO2 diffusors of the M series (internal CO2 reactors) can be used with CO2 injection systems using one-way or refillable cylinders of all brands, but not with yeast-based CO2 fertilization.

Instructions for use of the AQUA-NOA CO2 diffusor of the M series with bubble counter
Screw off the lower lid and take out the bubble counter and the check valve. Turn the main part upside down and fill with clear water (to around three quarters of its capacity). Put the parts you had taken out back in and screw on the lid.

AQUA-NOA - CO2 Inner Reactor (Diffuser) M-Series

Variants and technical details

CO2 Inner Reactor
Diffuser M - Variant
Aquarium
to liters
Height
of reactor
Diamter
of reactor
Diamter
of ceramic
including seal
Bubble
Counter
Check
Valve
Permanent
CO2-Test
MS1 90 l 30 mm 28 mm 15 mm
MM1 250 l 34 mm 32 mm 23 mm
ML1 400 l 34 mm 34 mm 27 mm
MS2 90 l 64 mm 28 mm 15 mm
MM2 250 l 78 mm 32 mm 23 mm
ML2 400 l 80 mm 34 mm 27 mm
MS3 90 l 97* mm 28 mm 15 mm
MM3 250 l 115* mm 32 mm 23 mm
ML3 400 l 117* mm 34 mm 27 mm

* The CO2 permanent test does not have to be mounted under the diffuser. By means of a suction cup, it can also be positioned elsewhere in the aquarium. The total height of the CO2 diffuser is then equal to version 2 of the CO2 diffusers.
